Jupiter got a bruise.. only one but a large one.

[ 5 ] Comments

Hello,

Last Sunday I posted on my blog an announcement about the possible recent impact on Jupiter atmosphere. I did not realize that a lot of my colleagues read this blog. On Sunday evening Paul Kalas, an adjunct professor at UC-Berkeley, but also a colleague and a friend, contacted me to let me know that he was observing at Keck Observatory and could potentially observe this feature.

Over the night, we discussed and prepared the observations. Interestingly, Paul is in sabbatical  in Crete (Greece), I was in San Francisco, and Mike Fitzgerald, recently hired professor at UCLA, was on the Big Island to conduct their observations. Their program was initially to detect  the exoplanet Fomalhaut b but they managed to squizz as well some observations of Jupiter. It is when I woke up that I found out that  they detected an anomalous bright feature at the same location than the dark sport reported by the Australian amateur astronomer Anthony Wesley from Murrumbateman (NSW, Australia).

On Monday, I gave a talk to our REU students in the morning and then rushed in my office at SETI Institute  to process the data. My apologize to my colleagues since I had to leave on the side all my other projects (writing grant proposals, reviewing a thesis) I am attaching the best frames that we got in Kp band (2.2 um). As you can see the scar has an interesting shape. One of our dilemma over the day was to check if it was real or not.

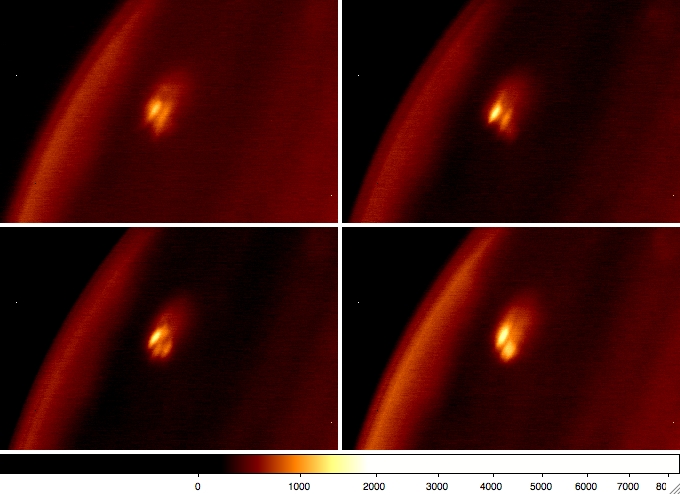

Individual frames showing the bright feature in Kp band (2.2 um)

Individual frames showing the bright feature in Kp band (2.2 um)

Our colleagues (Glenn Orton from JPL and his colleague) at IRTF also observed the feature and published a NASA-JPL press release during the day.

On Monday night, I continued the data analysis and extracted from the H band frames (1.6 um) the same feature. Interestingly, it has almost the same shape (two or three bright peaks) confirming that they are genuine. We detected it marginally in CH4 filter at 1.6 um. Additional observations taken 4 h later by Mike Fitzgerald that I also processed over the night showed that there is no additional impact features on Jupiter. So whatever hit Jupiter this time was not a disrupted with multiple fragment comet like Shoemaker-Levy 9 (SL9).

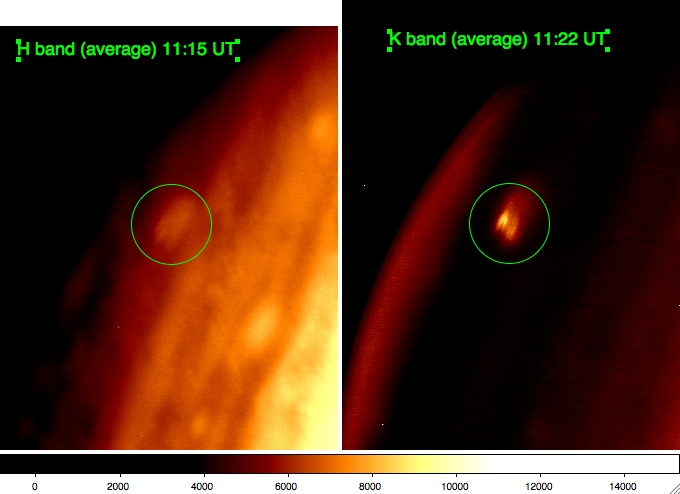

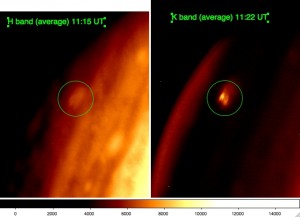

Comparison between H and K band observations. The bright feature is marginally detected in H band but has the same shape

Comparison between H and K band observations. The bright feature is marginally detected in H band but has the same shape

In the mean time, I posted the data for my colleague Mike Wong, researcher at STScI, who mastered the problems of deprojection and has a lot expertise in the study of Jupiter. He prepared a combined H+K map of the feature which allowed us to get its size and also its location. We confirmed that the position is similar than the dark feature seen in visible (305 +/- 1.5 deg west, 57 +/- 1.5 deg south in system III).

We submitted an CBET circular which was published this morning (July  21) and into which we report the analysis of the observations. The PR officers at UC-Berkeley (R. Sanders) and at Keck Observatory (Ashley Yeager)  wrote two press-releases: one is already published at Keck Observatory and a second one about to be released at UC-Berkeley (I will update this link in a few minutes). The entire project is a great team work and I am thankful that Paul Kalas and his colleagues considered to do these observations.

This  is, I think, an exciting result and we advertise it as quickly as possible because additional observations are needed to understand and better constrain the nature of the impactor (comet or asteroid?). The complex shape of the feature ma suggest that the impactor fragmented before colliding with Jupiter. High angular resolution with AO systems or with HST will definitely provide an answer to this question. Additionally, if we monitor the scar shape we should be able to estimate the profile of the wind at this high latitude (57S). Spectroscopic studies may also reveal the nature of the impactor, but also the composition of the Jupiter’s interior. So many projects, so little time :-)

I recently got questions from colleagues and journalists. Here a tentative answer to the most common questions. I must admit that I am not yet fully aware of the tons of publications which  followed the SL9 impact. I was 22 years old, and a young guide tour (!) at the Pic du Midi when it happened, so I was not yet involved in astronomy. It will be definitely interesting to compare this impact with SL9 which happened exactly 15 years ago.
Why didn’t we see it coming? The impactor may have been too small so too faint for our current instrument. If it is a small asteroid (less than 1 km in diameter) its brightness will be beyond the capabilities of current survey instruments. It is also possible that we were not looking in the right direction. This clearly justifies the need for whole sky survey to detect minor planets such as LSST or Pan-Starr.

Is the Solar System a dangerous place? We should be thankful to have a large planet like Jupiter in our solar system. Jupiter is suffering for us receiving the impact of bolides coming from the outer part of the solar system because of its strong gravitational field.

What kind of additional observations are planned? More obsevations are scheduled this week at Keck observatory, and most likely at Gemini North & South and the VLT. A lot of large aperture telescopes will  contribute to this campaign.  It is a revival of the SL9 campaign which was a very cheerful memory for our community.  HST will also contribute and there is rumors that the brand new WFP3 will observe it soon. Imaging and spectroscopy studies in all wavelength range are needed. Stay tune!

How often does this kind of event happen? This is a very difficult question, and I am not sure I can provide a response. It is evident that amateur astronomers are equipped with state-to-art cameras which should allow them to detect these events more often. Because the planetary science community does not have a survey telescopes dedicated to observe the planets (unfortunately), we entirely rely on the contribution of amateur astronomers to detect these impacts. This is also true for detecting supernovae, recording lightcurve of asteroids and astrometric positions of near Earth asteroids.It is quite possible that over the last 15 years we have missed most of them. The future will tell us the frequency of these events, we need to keep the amateur astronomy around the world motivated to make sure that these Giant planets are often observed, not only for the science, but also for their beauty and for inspiring the young generation.

Clear skies

Franck Marchis
PS: I am attaching a large image of the impact from UC-Berkeley Press-release

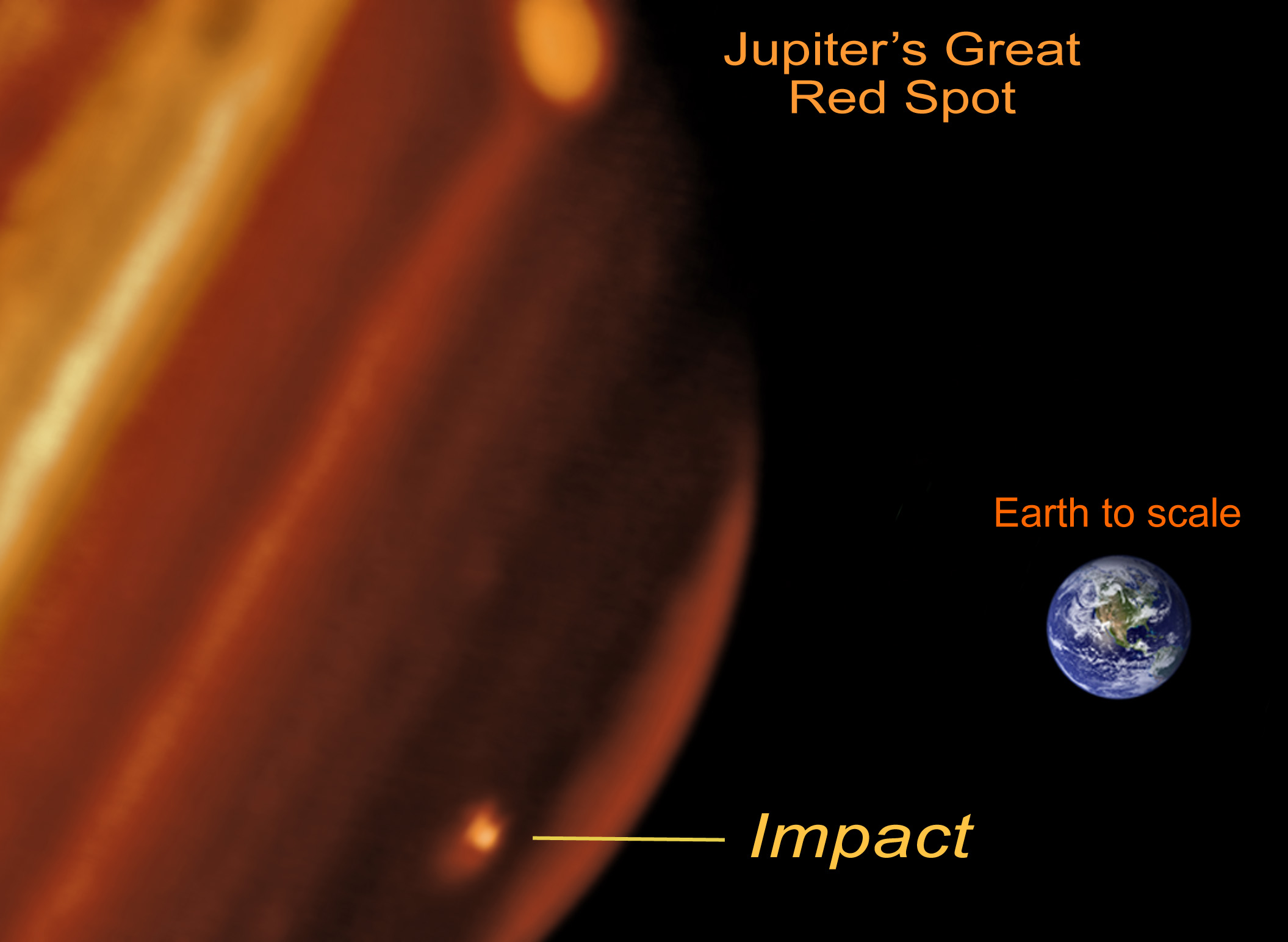

The scar on Jupiter observed with Keck II telescope on July 20 UT. (credit: P. Kalas, M. Fitzgerald, F. Marchis)

The scar on Jupiter observed with Keck II telescope on July 20 UT. (credit: P. Kalas, M. Fitzgerald, F. Marchis, J. Graham)

About Franck Marchis

Dr. Franck Marchis is a Researcher at the Carl Sagan Center of the SETI Institute since July 2007. Over the past 15 years, he has dedicated his research to the study of our solar system using mainly ground-based telescopes equipped with adaptive optics. More recently he has been also involved in the definition of new generation of AOs for 8 -10 m class telescopes and future Extremely Large Telescopes. He has developed algorithms to process and enhance the quality of images, both astronomical and biological, using fluorescence microscopy. His currently involved in the development of the Gemini Planet Imager, an extreme AO system for the Gemini South telescope which will be capable of imaging and record spectra of exoplanets orbiting around nearby stars.
